The Metal Panels and Trim for a Shed Roof calculator computes the total number of metal panels and lengths of trim needed to cover a single sloped roof based on the span, ridge length and the front and back overhangs.

INSTRUCTIONS: Choose units and enter the following:

• (L) Ridge Length (include rakes)
• (S) Span
• (P) Pitch (choose: flat, 2/12, 4/12, 6/12, 8/12, 10/12, 12/12, 14/12)
• (oH) Overhang (default: 12")
• (MoE) Margin of Error (added to the calculated Panel Length)
• (maxLen) Max Length of Panels

Metal Panels and Trim for Shed Roof (TL): The calculator returns the following:

1. Gable Trim: total length of gable trim, equals four times a gable length
2. Metal Panels:  number and length of metal panels for the roof.
3. Metal Screws: number of screws needed to attach panels to roof.
4. Snow Guard: total length of snow guard, equals twice the ridge length.
5. Angle Trim: total length of angle trim (used as facia and on the ridge).
6. Purlins: number and length of rows of purlins for the roof
7. Area: area of the roof in square feet.

The Math / Science

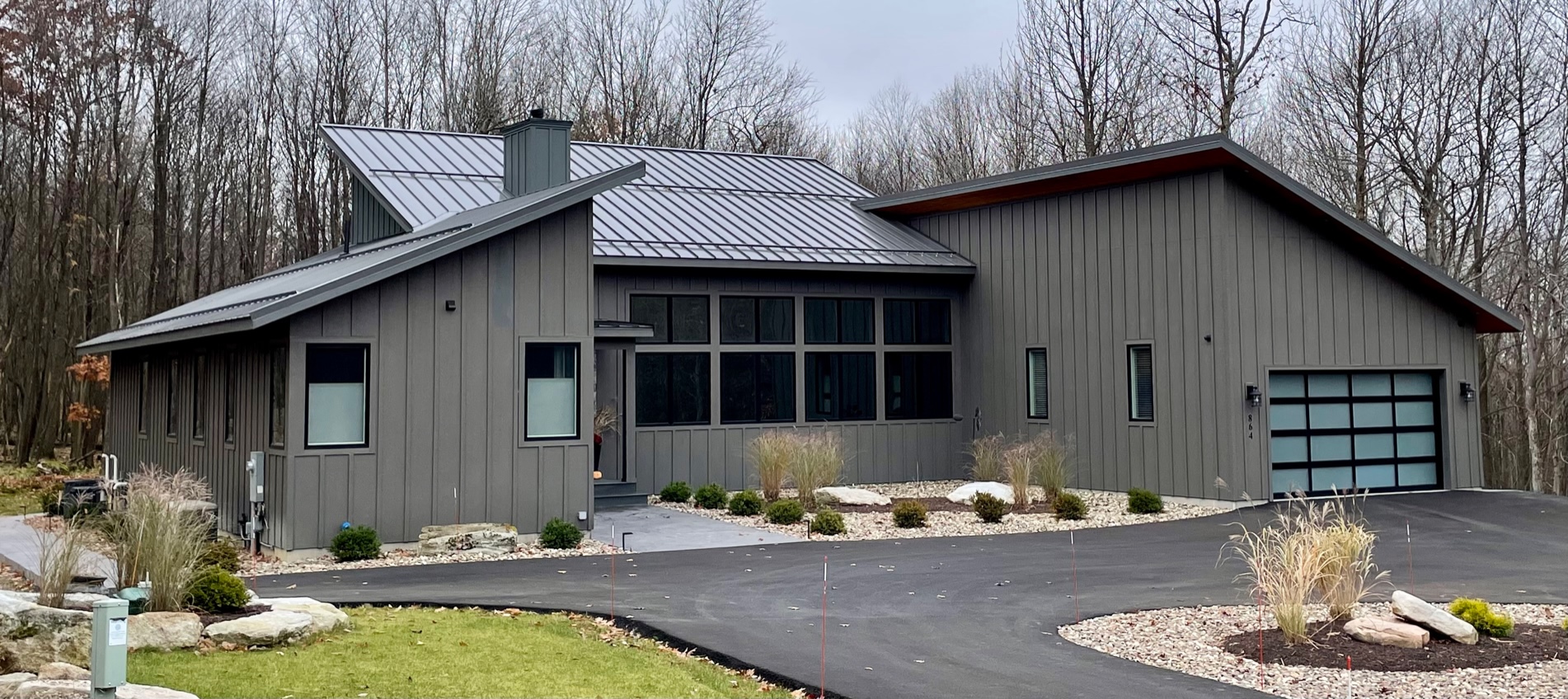

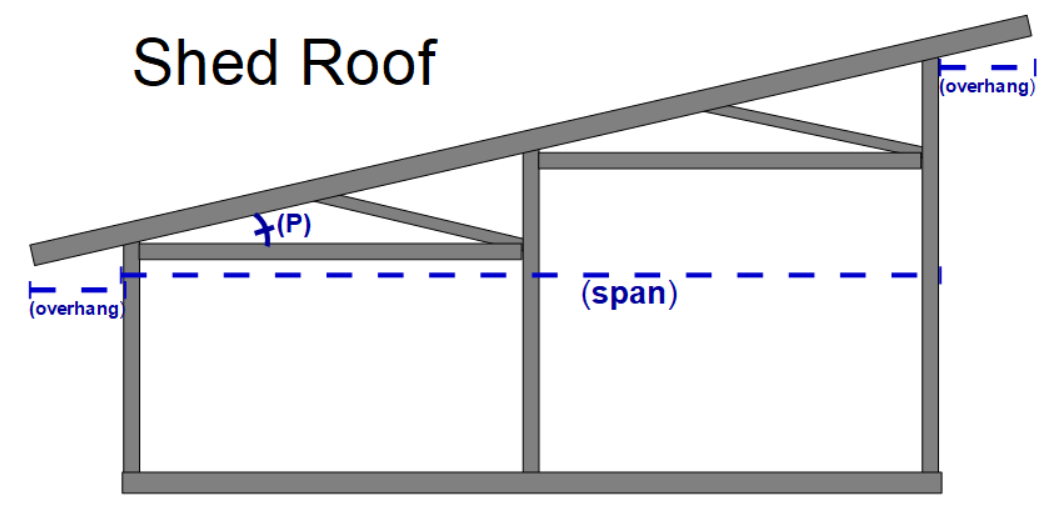

A Shed Roof is a roof with a single slope (see picture).  Shed Roofs are used in simple agriculture buildings and state of the art modern buildings.  The Metal Panels for a Shed Roof calculator is meant to help with material estimates for a roof.  The rafter length uses the pitch (rise over run) and the span, which is the width plus the two overhangs (front and back).

The number of screws are based on 75 per every 100 ft² of area covered by metal panels.

In all cases, confirm your estimates with a professional estimate and adhering to local building codes.
