`vecV' = rotate(vecV " around " vecU " by " alpha)`

Enter a value for all fields

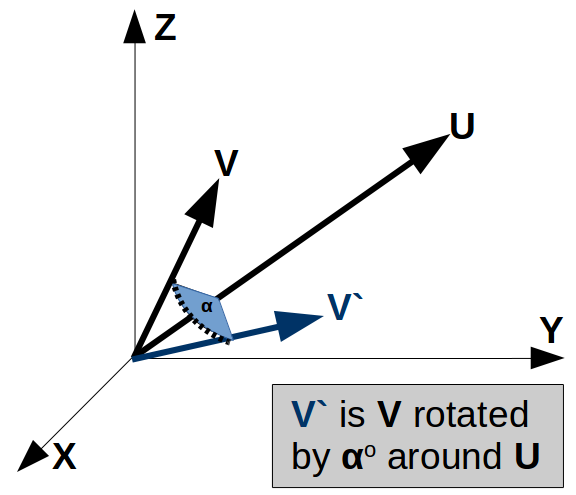

The **Vector Rotation** calculator computes the resulting 3D vector created by rotating a base vector (**V**) about a rotation vector (**U**) by an angle(**α**).

**INSTRUCTIONS:** Enter the following:

- (
**V**): Base vector (V) to be rotated - (
**U**): Rotation axis vector (U) - (
**α**): Rotation angle - (
**n**): Number of Significant Digits

**Rotated Vector (V'):** The calculator returns the resultant vector (V')

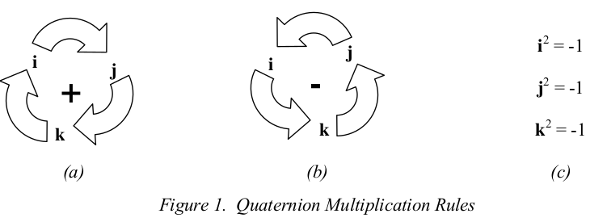

The Vector Rotation formula uses quaternions to compute the resulting vector from the specified rotation. It uses the rotation of axis (U) and the rotation angle (α) to compute the quaternion of rotation (q). It then uses the quaternion vector rotation formula as follows:

V' = q⋅V⋅q^{*}

where:

- V' is the rotated resultant vector.
- q is the quaternion of rotation
- q
^{*}is conjugate of the quaternion of rotation.
