`A = 2*pi* "h" * sqrt(( [ ( r_1 - r_2 )^2 + "h" ^2] * [ ( r_1 + r_2 )^2+ h^2])/(4*h^2))`

Enter a value for all fields

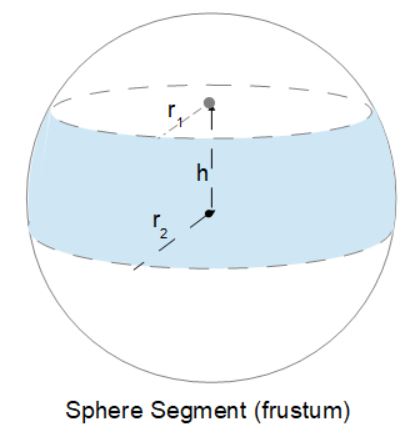

The **Surface Area of a Sphere Segment** calculator computes the surface area of a slice of a sphere made by two parallel plane cutting through the sphere (See Diagram). The surface area is just for the sphere walls and does not include the top and bottom circles.

**INSTRUCTIONS**: Choose units and enter the following:

- (
**r**) upper radius_{1} - (
**r**) lower radius_{2} - (
**h**) distance between the parallel planes. (See diagram)

**Sphere Frustum Surface Area (A):** The surface area is returned in square meters. However, this can be automatically converted to compatible units via the pull-down menu.

The **Surface Area of a Sphere Segment** formula is:

`A = 2*pi*h * sqrt(( [ (r_1-r_2)^2 + h^2] * [ (r_1+r_2)^2+ h^2])/(4*h^2))`

where:

- A = Surface Area of Sphere Segment (frustum)
- r
_{1}= top radius - r2 = bottom radius
- h = distance between planes

This computes the surface area of a slice of a sphere made by two parallel plane cutting through the sphere (See Diagram) . A sphere slice could be considered a sphere frustum. The inputs are upper radius (**r _{1}**), lower radius (
