`V = f( "a" , "b" , "h" , "t" )`

Enter a value for all fields

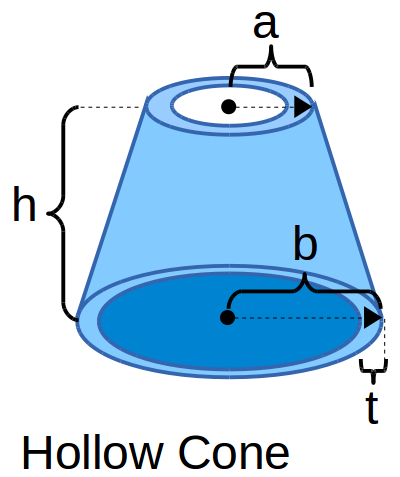

The **Volume of the Shell of a Cone** (**Hollow Cone**) calculator computes the volume of the shell of a cone. The volume is a function of the top radius (**a**), bottom radius (**b**), thickness (**t**) and height (**h**) in between.

**INSTRUCTION:** Choose your length units (e.g. inches or meters) and enter the following:

- (
**a**) Outer Radius of Top surface - (
**b**) Outer Radius of Bottom surface - (
**h**) Height between Top and Bottom - (
**t**) Thickness of Shell

**Cone Shell Volume (V)**: The calculator computes the volume in cubic meters (m^{3}). However this can be automatically converted to many other volume units (e.g. gallons or cubic feet) via the pull-down menu. To compute the Weight of the Shell of a Cone, CLICK HERE.

A frustum of a cone is created by parallel planes that go through the cone that are normal (perpendicular) to the center axis of the cone. The planes are separated by the height (h). The formula for the Volume of the Frustum of a cone is as follows:

V = ^{1}/_{3} • π • h(a^{2}+a•b+b^{2})

where:

- V = volume of the cone frustum
- a = radius of the top circle
- b = radius of the bottom circle

Assuming a constant thickness in the wall of the cone shell, the** **formula for the volume of a cone shell is:

VCS = VO - VI

where:

- VCS = Volume of the Cone Shell
- VO = Volume of Outer Cone
- VI = Volume of the Inner Cone
