`V_g = pi * "gT" *[ ( "d2" /2)^2 - ( "d1" /2)^2]`

Enter a value for all fields

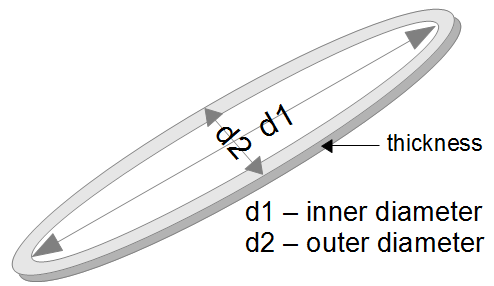

The **Gasket Volume **calculator computes the volume of a circular gasket based on the thickness of the gasket (gT) and the surface area. *circular gasket*The surface area is calculated as the difference between two circles with diameters of d1 and d2.

**INSTRUCTIONS:** Choose units and enter the following:

- (
**gT**) Gasket Thickness - (
**d1**) Inner diameter of the gasket - (
**d2**) Outer diameter of the gasket

**Gasket Volume (Vg):** The calculator computes the volume of the gasket in cubic inches. However this volume can be automatically converted to any other volume units (e.g. cubic millimeters) via the pull-down menu.

The equation for the gasket volume is:

`V_g = pi * gT *[ (d_2/2)^2 - (d_1/2)^2]`

where:

- V
_{g }is the volume of the gasket - gT is the thickness of the gasket
- d
_{2}is the outer diameter - d
_{1}is the inner diameter

**Cylinder Bore Diameter**: Computes the diameter (bore) based on the engine displacement, number of cylinders and the stroke length.**Bore Stroke Ratio**: Computes ratio based on the diameter of the bore and the length of the stroke.**Combustion Ratio:**Computes ratio base on the minimum and maximum displacements of the cylinder at the beginning (1-Induction) and compressed (3-Power) portions of the combustion cycle**Displacement Ratio:**Computes ratio based on the volumes at the beginning and end of the stroke.**Rod and Stroke Length Ratio:**Computes ratio base on the rod and stroke lengths.**Stroke Length:**Computes the required stroke length based on the total engine displacement, number of cylinders and the bore.**Piston Position:**Computes the piston position based on the crank angle, crank radius, and rod length.**Piston Deck Height:**Computes deck height based on Block Height, Rod Length, Stroke Length, and Pin Height.

**Total Volume (displacement) of a Combustion Engine:**Computes volume based on the bore, stroke and number of cylinders.**Volume (displacement) of a Engine Cylinder:**Computes volume based on the bore and stroke.**Volume (displacement) of an Engine with an Overbore:**Computes volume based on the stroke, bore, overbore and number of cylinders.**Equivalent Volume of a Rotary Engine:**Estimates rotary engine volume based on the swept volume and number of pistons.**Carburetor Air Flow**: Estimates the volumetric flow of air through a carburetor based on a four-stroke engine's displacement, RPMs, and volumetric efficiency.**Compressed Volume of a Cylinder:**Compute volume when the piston is at the end of the stroke and the chamber is at its smallest (and most compressed) volume, based on the chamber, deck, crevice, chamfer, gasket, valve relief and dome/dish volumes. This is the second volume (V2) in the Compression Ratio calculation.**Volume of a Gasket:**Computes gasket volume (displacement) based on the inner and outer diameters and the gasket's thickness.**Volume of a Cylinder Deck**: Computes the deck volume based on the deck height and the bore.**Volume of a Cylinder Crevice:**Computes crevice volume based on the piston diameter, cylinder bore and the crevice height.**Volume of a Cylinder Chamfer:**Computes chamfer volume based on the cylinder diameter and the chamfer height and width.**Clearance Volume of a Piston:**Computes the volume remaining in the combustion chamber when the piston is at its top dead center (TDC) which is the space above the piston crown when it's at its highest point in the cylinder.**Engine Compression Ratio:**Computes the ratio of the volume of the combustion chamber with the piston at its bottom dead center (BDC) to the volume with the piston at its top dead center (TDC).
