`DR = V_1 / V_2 `

Enter a value for all fields

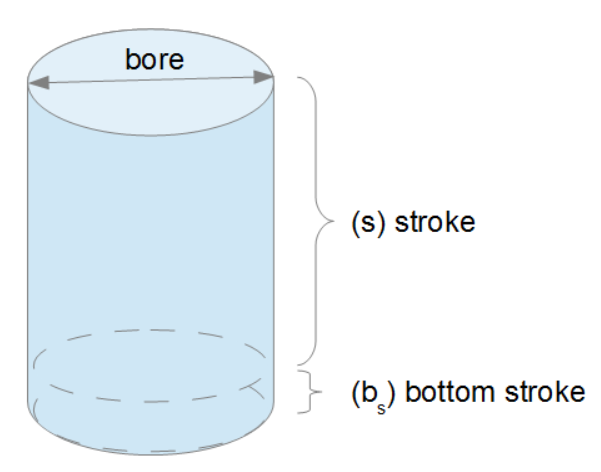

The **Engine Cylinder Displacement Ratio **calculator computes the displacement ratio (DR) of * Volumes in a Cylinder* a combustion engine cylinder based on cylinder volume (**V _{1}**) and the chamber or compression volume (

**INSTRUCTIONS:** Choose units and enter the following:

- (

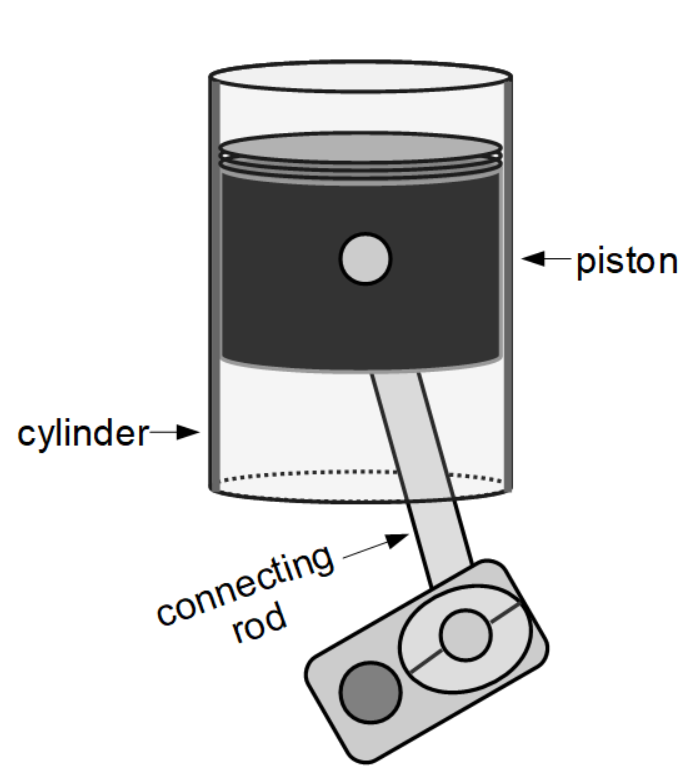

**V**) Volume of the cylinder chamber at the top of the stroke when the chamber is as large as possible._{1} - (
**V**) Volume of the cylinder chamber at the bottom of the stroke when the chamber is as small as possible._{2}

**Displacement Ratio (DR):** The calculator computes and returns the ratio between these two volumes.

The formula for Engine Displacement Ratio is:

DR = V_{1} / V_{2}

where:

- DR = Displacement Ratio
- V
_{1}= Volume of the cylinder chamber at the top of the stroke when the chamber is as large as possible. - V
_{2}= Volume of the cylinder chamber at the bottom of the stroke when the chamber is as small as possible.
