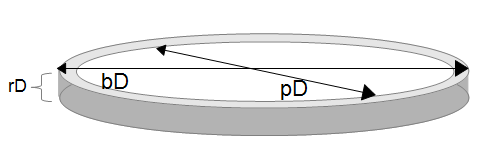

The Piston Crevice Volume calculator computes the crevice volume (Volc) of a crevicevolume-illustration.png  Piston Ring Crevice combustion engine cylinder as a function the bore diameter(bD), piston diameter (pD) and the top ring depth (rD).

INSTRUCTIONS: Choose your preferred units, the default is inches and mils, and enter the following:

   Inch Equivalences
FractionDecimalMils
1/16th0.062562.5
1/32th0.0312531.25
1/64th0.01562515.625

Cylinder Crevice Volume: The volume is computed in cubic inches.  However, the can be automatically converted to other volume units (e.g. cubic centimeters aka CCs) via the pull-down menu.

The Math

Engine Math (Baechtel) and I disagree on this equation.  Engine Math takes the difference of the diameters (bore and piston), multiplies that difference by the circumference of the bore to create the surface area of the crevice and then multiplies that surface area by the depth to the top ring to get the volume.  The surface area of that equation is geometrically wrong.  Fortunately these crevice volumes don't affect much.  But the mathematician in me can't let it sit.  The correct formula for the crevice surface area is the difference between the two circle areas defined by the bore diameter and the piston diameter, using PI*r2 where r is half of the respective diameters.  THEN multiply the correct surface area by the crevice depth from the deck to the top piston ring.  I'm sure Baechtel's answer is probably good enough, but this is more correct.
