The Ballistic Flight Parabolic Equation calculator computes the parabolic equation coefficients based on the launch angle above the horizon (θ) at an initial velocity (V) assuming a constant downward acceleration (g).
INSTRUCTIONS: Choose units and enter the following:
- (V) Initial Launch Velocity
- (θ) Launch Angle above the horizon.
- (g) Acceleration due to gravity (default is 9.80665 m/s2)
Parabolic Flight Equation: The calculator returns the equation of the parabola to match the flight. It also returns the maximum ballistic range and max height achieved.
The Math / Science
The formula for the parabolic flight equation is:
y = a•x² + b•x + c
where:
- a = -4 • M / R²
- b = 4 • M / R
- c = h (initial height)
- M is the Ballistic Maximum Altitude without h
- R is the Ballistic Maximum Range without h
The addition of the initial height (h) to the Max Altitude and Range have the effect of shifting the parabola to the right, when all that is wanted is a shift up.

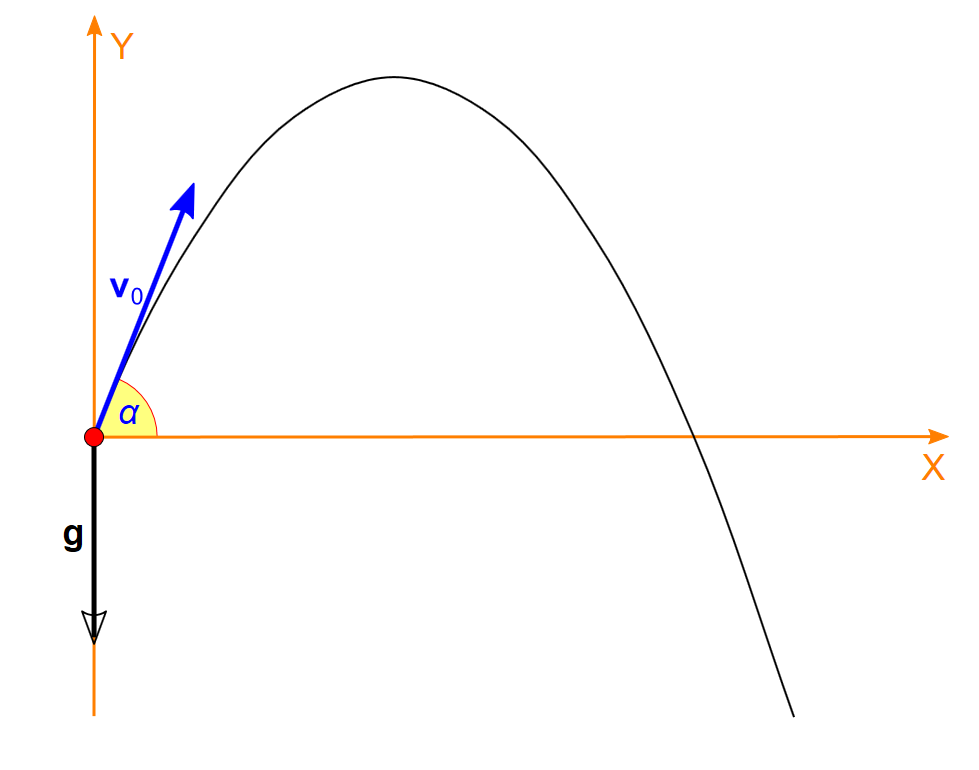

One of the most common representations of a parabola in nature is an object moving in the gravitational field of a massive body, such as the projectile motion of a body affected by the Earth's gravity. The figure shows the parabolic trajectory typifying a projectile that is affected solely by gravity, g.
