` = "Polygon Ring Volume"`

Enter a value for all fields

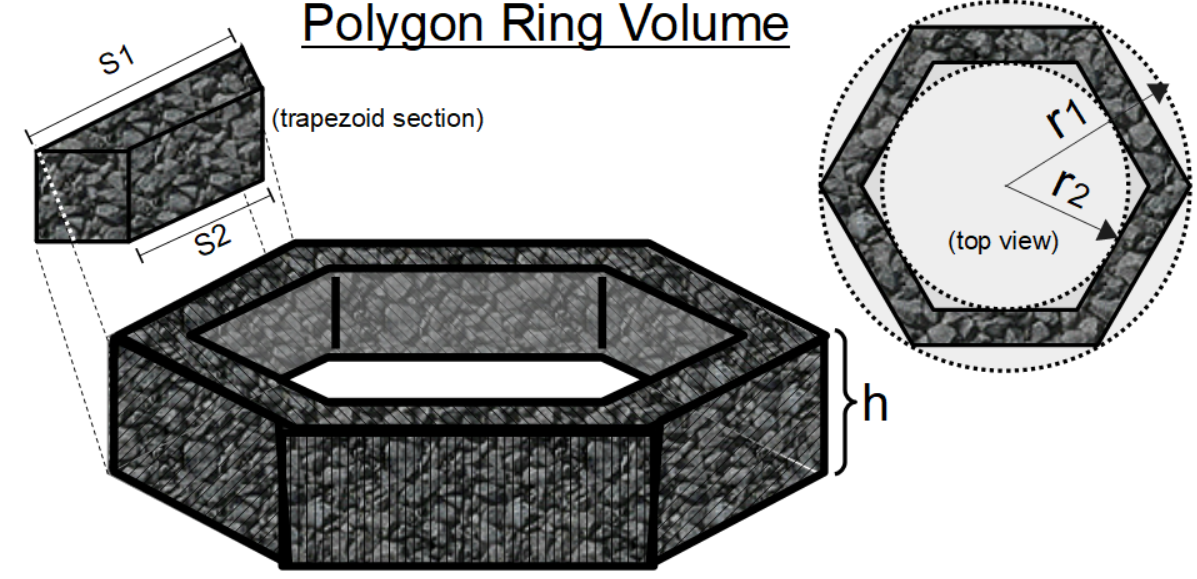

The **Polygon Ring Volume** calculator computes the volume of a polygon ring (see diagram) based on the dimensions and number of sides. This is the basic geometry of a Gabion Wall Ring.

**INSTRUCTION**: Choose units and enter the following:

- (
**r1**) Outer Radius - (
**r2**) Inner Radius - (
**h**) Height - (
**n**) Number of Sides (e.g. 5 for pentagon)

**Polygon Ring Volume (V): **The calculator returns the following:

- (V) Volume of Polygon Ring in cubic meters.
- (A) Surface Area of Polygon Ring in meters.
- (S1) Outer Side Length in meters.
- (S2) Inner Side Length in meters.
- (RD) Ring Depth between Polygons in meters.
- (TZV) Volume of 1 Trapezoid Column in cubic meters.
- (TZA) Surface Area of a Trapezoid Column in square meters.
- (TZAn) Combined Surface Area of n Trapezoid Columns in square meters.

The values with units can be automatically converted to compatible units via the pull-down menu.

A **regular polygon** is a geometric shape with three or more straight sides where every side is the same length and every angle between connecting sides are the same angle. Because of the symmetry of the regular polygon, all the vertices of the polygon can be constructed to touch a circle in which the regular polygon is inscribed and all the chords that are polygon sides will then obviously be of equal length . Likewise, because of the regular polygon's symmetry, a circle constructed to be inscribed in a regular polygon and touching the polygon will touch the regular polygon at the midpoint of the polygon side. As shown in the pictures, Figure 1 and Figure 2, lines from the regular polygon's vertices to the circle's center form n isosceles triangles of equal area.

The names of polygons vary based on the number of sides as follows:

- triangle - 3 sides
- square - 4 sides
- pentagon - 5 sides
- hexagon - 6 sides
- heptagon - 7 sides
- octagon - 8 sides
- nonagon - 9 sides
- decagon - 10 sides
- hendecagon - 11 sides
- dodecagon - 12 sides
