The Surface Area of a Greenhouse (gabled roof) calculator computes the exterior surface area of a greenhouse based on simple measurements. .png)

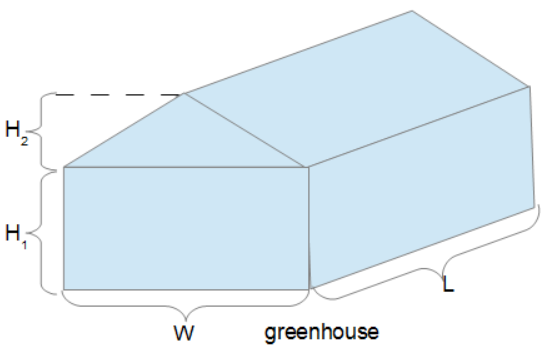

Gabled Roof Structure
INSTRUCTIONS: Choose units and enter the following:
- (W) Width of the greenhouse (under the gable).
- (L) Length of the greenhouse (perpendicular to gable).
- (H1) Height of main area
- (H2) Height of the gable
Greenhouse Surface Area (SA): The calculator returns the surface area in square feet. However this can be automatically converted into other area units via the pull-down menu.
The Math / Science
.png)
The surface area calculation is a simple computation using the sum of the surface area components:
- End gables =(1/2 * H2 * W) * 2
- Roof Area = 2 * L * sqrt( (W/2)2 + (H2)2 )
- Side Walls = 2*W*H1 + 2*L*H1
Note: The formula above is accurate whether the greenhouse has even gables (isosceles triangle) or uneven gables as in the second diagram. Both gable areas are triangles with a surface area of base times height. In the latter case, the base is the sum of the two widths (W = W1 + W2)
USES
The surface area of a greenhouse is useful in calculating the material needed for construction and for the calculation of the conductive heat loss.
