Cylinder Calc

vCalc Reviewed
Calculator / Last modified by KurtHeckman on 2019/05/03 01:06
Right Cylinder
Surface Area Radius from Volume and Height
Lateral Surface Area Height from Volume and Radius
Volume Height from Surface Area and Radius
Gallons in a Cylinder Volume of a Partial Horizontal Cylinder
Mass Volume from height and circumference
Density Mean Density Lookup
Slanted Cylinder Surface Area
Slanted Cylinder Volume
Slanted Cylinder Weight
Moment of Iniertia (center axis)
Moment of Inertia (diameter at end)
Moment of Inertia (perpendicular to axis)

The Cylinder Calculator computes  cylendar.jpgRight CylindercylinderVolume.png     Partially filled Horizontal Cylinderslanted cylinder.jpgSlanted Cylinderthe radius, height, surface area, volume, density, mass, weight and moments of inertia for objects shaped like a geometric circular cylinder.

Right Cylinder Calculators
  1. Total Surface Area of a Cylinder
  2. Lateral Surface Area (sides) of a Cylinder
  3.  Volume of a Cylinder
  4. Gallons in a Cylinder

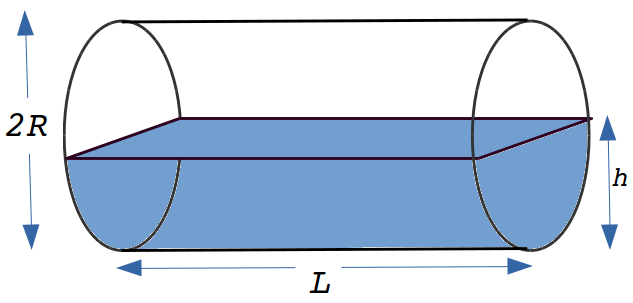

  5.  Volume of a Partial Horizontal Cylinder
  6. Mass of a Cylinder
  7. Density of a Cylinder.
  8. Height of a Cylinder from volume and radius.
  9. Radius of a Cylinder from volume and height.
Slanted Cylinder



  1. Compute the Lateral Surface Area of a Slanted cylinder.
  2. Compute the Volume of a Slanted cylinder.
  3. Compute the Weight or Mass of a Slanted cylinder.
Moments of Inertia of Cylinders

MoIcircularcylinderdiameteratend-illustration.pngCylinder Moments of Inertia

  1. Compute the moment of inertia of a cylinder shaped object based around the central axis
  2. Compute the moment of inertia of a  cylinder shaped object around the end of the cylinder
  3. Compute the moment of inertia of a  cylinder shaped object perpendicular to the central axis.
  4. Look up the mean density of common substances (useful in calculating the mass/weight and the moments of inertia)

Mean Density, Mass and Moments of Inertia: For the mass equations, one can use the common mean densities formula to look up the mean density of common substances and then use the resulting value as input to the mass equation. The Mean Density Table Lookup button provides the mean density of hundreds (650+) of substances from gases, to metals, woods, foods, liquids and much more.  The results are given in kg/m3 which is the default input units for the mass calculation.

The result of the mass equation can then be used in the equations for the moments of inertia.

Cylinder

A cylinder (from Greek κύλινδρος – kulindros, "roller, tumbler") is one of the most basic curvilinear geometric shapes, the surface formed by the points at a fixed distance from a given line segment, the axis of the cylinder. The solid enclosed by this surface and by two planes perpendicular to the axis is also called a cylinder. The surface area and the volume of a cylinder have been known since deep antiquity.

In differential geometry, a cylinder is defined more broadly as any ruled surface spanned by a one-parameter family of parallel lines. A cylinder whose cross section is an ellipse, parabola, or hyperbola is called an elliptic cylinder, parabolic cylinder, or hyperbolic cylinder respectively.

The open cylinder is topologically equivalent to both the open annulus and the punctured plane.

See Also

Related Math Science:

Other applications of cylinders:

References

  • Wikipedia - http://en.wikipedia.org/wiki/Cylinder_%28geometry%29
