` = "Chairs for Rebar Grid"`
Enter a value for all fields

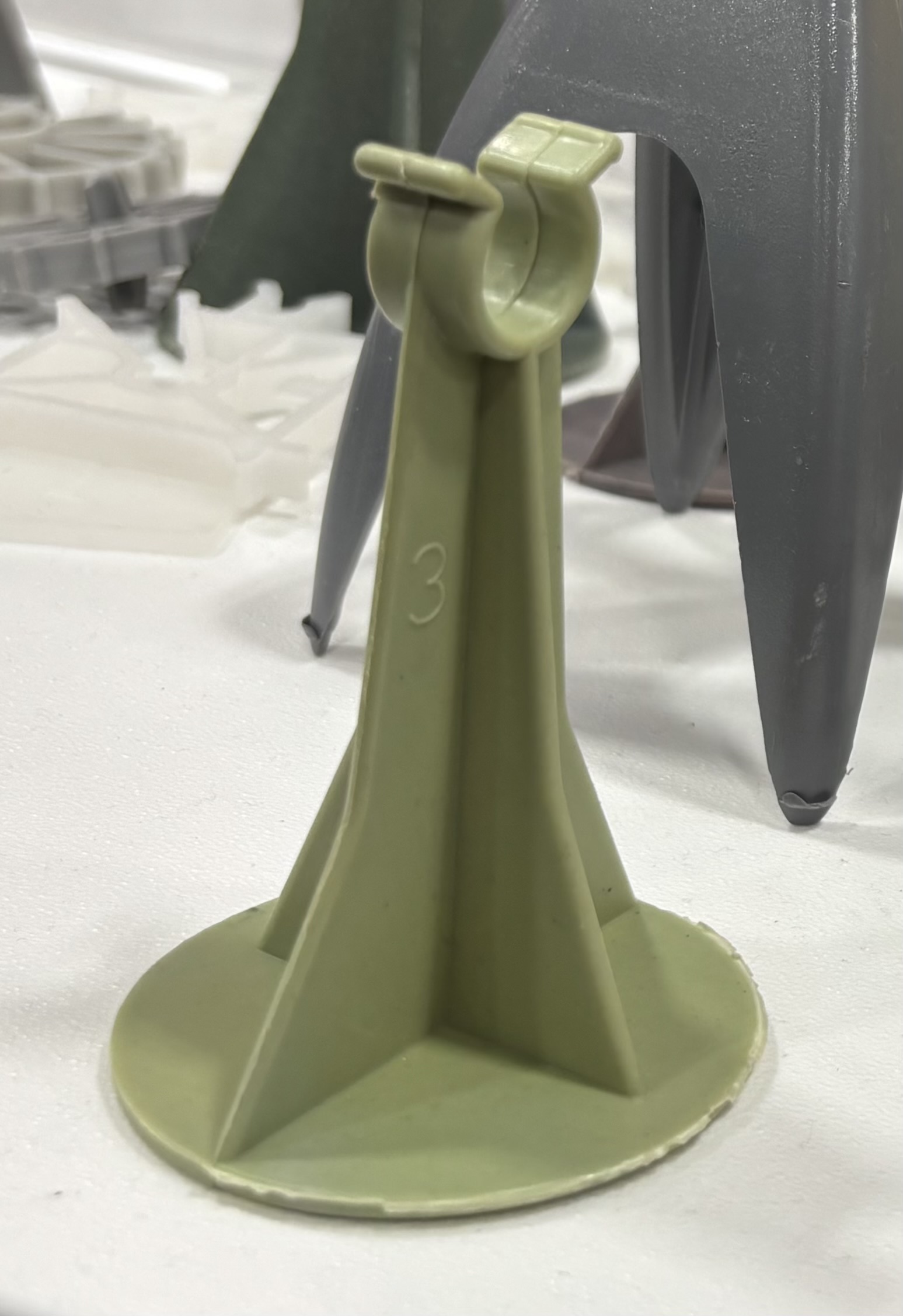

The Chairs for Rebar Grid function computes the number of support chairs needed to suspend a mat of rebar away from the ground based on the dimensions of the slab and the chair spacing.
INSTRUCTIONS: Choose units and enter the following:
- (L) Slab Length
- (W) Slab Width
- (CS) Chair Spacing (Default: 3 feet)
Chairs for Slab (nC): The calculator returns the number of support chairs needed for the slab.
The Math / Science
To compute the number of point for the chairs in a rectangle grid, where no two adjacent points are more than a specified separation (Chair Spacing), the formula is as follows:
nC = (roundup(L/CS) + 1) * (roundup(W/CS)+1)
where:
- nC = Number of Support Chairs
- L = Length of Slab
- W = Width of Slab
- CS = Chair Spacing
