`sigma_"a" = "P" * r_i ^2 / ( r_o ^2 - r_i ^2)`

Enter a value for all fields

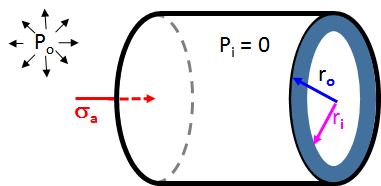

The **Axial Stress on a Cylinder **calculator compute the axial stress (σ_{a}) on the outer wall end caps of a closed cylindrical pressure vessel.^{1} This equation assumes the inside pressure P_{o} = 0.

**INSTRUCTIONS:** Choose units and enter the following:

- (
**P**) Pressure Outside of Closed Cylinder - (
**r**) Outer Radius of Cylinder_{o} - (
**r**) Inner Radius of Cylinder_{i}

**Axial Stress on a Cylinder (σ _{a}):** The calculator returns the stress in newtons per square centimeter. However, this can be automatically converted to compatible units via the pull-down menu.

The formula for the Axial Stress on a Cylinder is:

σ_{a} = P • (r_{i}²) / (r_{o}² - r_{i}²)

where:

- σ
_{a}is the axial stress on a cylinder - r
_{i}is the inner radius of the cylinder - r
_{o}is the outer radius of the cylinder

- Stress (Radial) in Cylinder
- Stress (Tangential) in Cylinder
- Stress (Radial) out Cylinder
- Stress (Tangential) out Cylinder
- Stress

- ^ Fundamentals of Engineering. 8th edition, 2nd Revision. National Council of Examiners for Engineering and Surveying (NCEES) - 2001. ISBN 978-1-932613-59-9. pg 33
