The Greenhouse Calculator provides useful equations and data for people who work with greenhouses and high-tunnels. This includes basics for greenhouse construction and heating, for mulching and coverage with straw and for greenhouse planters. DIFFERENT GREENHOUSE SHAPES Gabled Roof Structure Arched Roofed Structure Quonset Hut
include (see diagram):
To in your greenhouse, use the .

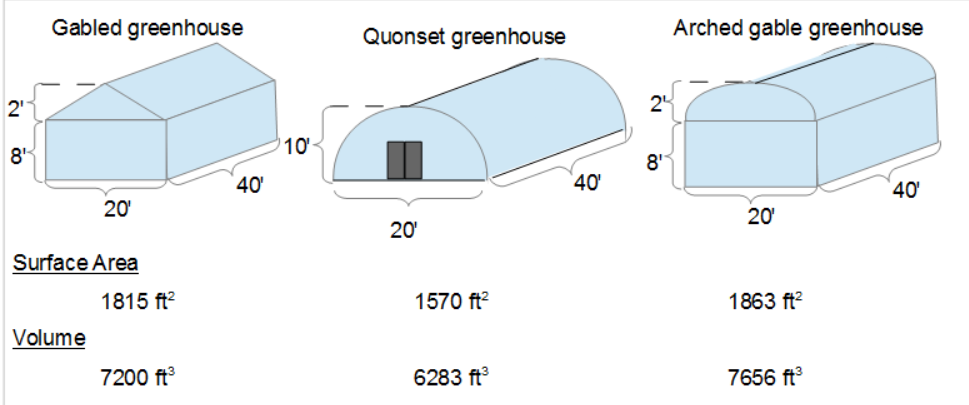

The figure shows three styles (building shapes) of greenhouses. Greenhouse shape vs volume and surface area comparison It also shows a comparison of the surface area and volume for three greenhouses with the same footprint (20' wide, 40' length, 10' high). The surface area and volume of the greenhouses are useful for heating, cooling and humidity monitoring. The surface area is also useful in calculating the material needs for the construction of greenhouses. The building equations include calculations for the volume and surface area for three types (building shapes) of greenhouses:
The calculator also includes an equation for the greenhouse's conductive heat loss through the outer skin based on the Surface Area, material insulating factor (U), and the maximum temperature variance.
vCalc provides automatic unit conversions for both input parameters and output results that included English and Metric (SI) units.
The primary use of a greenhouse is to create an environment conducive to growing plants with natural light, but where the temperature and humidity is controlled by the gardener. The basic greenhouse employs a substantial amount of passive solar heating. However, this may not be enough in some circumstances to prevent freezing or to reach maximum conditions for the growth of some plants. In these circumstances, greenhouses are often constructed with supplemental heating. The primary heat loss for a greenhouse are conductive heat loss through the greenhouse material and through air exchange with the outdoors through openings (even very small ones).
is the transfer of heat through a membrane. For greenhouses, the transfer of concern is typically warmth from within the greenhouse that is lost through the skin of the greenhouse into the outside environment. The is relatively simple:
CHL = A • vT • U
The U value is published for many material. Consult your product supplier for the actual U value of the material planned to be used. However, some common U values are as follows:
Consider the extreme cases in your area for the maximum temperature variance. For example, if your plants require a minimum of 57oF, and the possible low temperature outside is -14oF, the variance is 71oF.
The result of the equation is BTU/hour required to compensate for the conductive heat loss.
