`V = 1/3 * pi * "h2" ( "a" ^2+ "a" * "b" + "b" ^2) + pi * "b" ^2 * "h1" `

Enter a value for all fields

The **Volume of a Bottle** calculator computes the volume of a bottle shaped object (see diagram).

**INSTRUCTIONS:** Choose units and enter the following:

- (
**a**) - Neck Radius - (
**h**) - Neck Height (tapered neck section)_{2} - (
**b**) - Base Radius - (
**h**) - Base Height_{1}

**Volume of the Bottle (V):** The volume is returned in liters (L). However, this volume can be automatically converted to many other volume units (e.g. mL, gallons or cubic inches) via the pull-down menu.

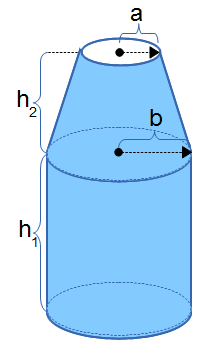

Geometrically, a bottle shaped object is the combination of right circular cone with a frustum defined by base radius (a) and top radius (b) and height (h_{2}) in between and a cylinder of radius (b) and height (h_{1}). See diagram.

The formula for the volume of a bottle is:

`V = (pi/3)*h2*(a^2+a*b+b^2) + pi * b^2 * h1`

where:

- V = volume of the bottle
- h1 = height of cone
- h2 = height of cylinder
- b = radius of base and bottom of cone
- a = radius of top of cone
