The **Rebar Lapping Length** calculator computes the length overlap needed at rebar joints.

**INSTRUCTIONS -** Enter the following:

- (
**rS**) Size of Rebar (choose from list) - (
**LF**) Lapping Factor. 40 (default) and 60 are common.

**Lapping Length (LL):** The calculator returns the length of rebar lap in inches. However, this can be automatically converted into other length units (e.g. centimeters) via the pull-down menu.

The formula for lapping length is:

LL = rD * LF

where:

- LL = Lapping Length
- rD = Rebar diameter (a function of the rebar size. See below)
- LF = Lapping Factor

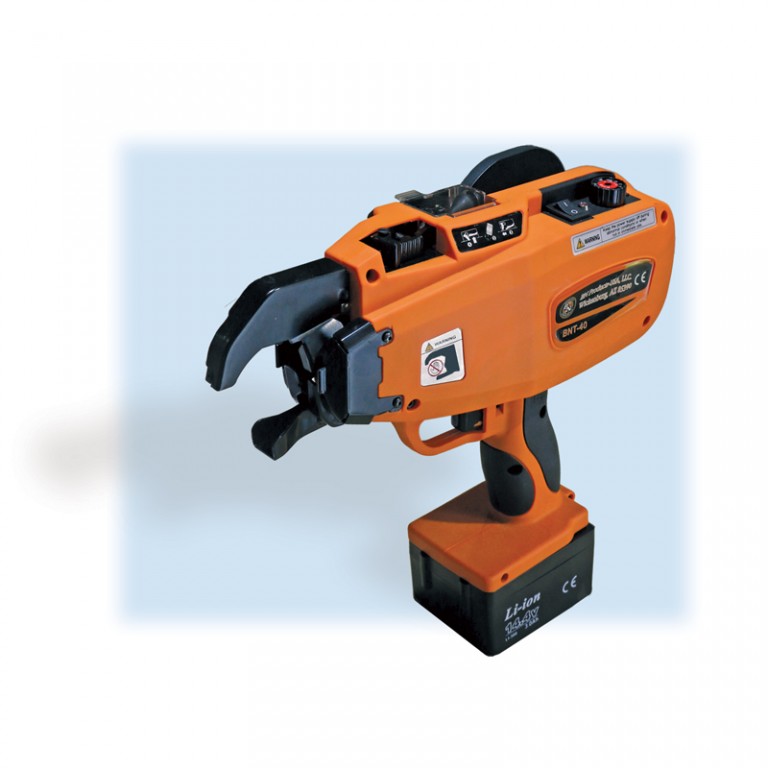

* BNT-40 Automatic Rebar Tier*

Rebar is short for reinforcing bar. Rebar is a roughly circular steel bar with ribs used to provide added strength to concrete structures. Rebar is put in place before concrete is poured. When the concrete has hardened, the concrete around the rebar ribs keep the rebar in place. Rebar and concrete expand similarly with temperature variations. This all has the net result of substantially added tensile strength when rebar is part of the concrete form. Carbon steel is the most commonly used material for rebar, which may also be coated with zinc or epoxy resin.

Rebar is laid out in grids, crisscrossed patterns of rebar, tied at the intersections where runs of rebar touch. The grids have spacing between the rebar rows, and they are placed within the concrete form by a specified inset from the edge of the concrete. Multiple parallel grids, at uniform space intervals, are referred to as rebar mats.

In the United States, rebar sizes are in increments of 1/8^{th} inches in diameter. Therefore, size 4 is 4/8^{th} of an inch, which is 1/2", and size 8 is a full inch in diameter. Based on this and the density of steel used in rebar, the Rebar Size Table contains reasonably accurate specifications.

- Cost of 20' Size 3 rebar stick ($5.76 USD)
- Cost of 40' Size 3 rebar stick ($9.96 USD)
- Cost of 20' Size 4 rebar stick ($9.99 USD)
- Cost of 40' Size 4 rebar stick ($17.94 USD)
- Cost of 20' Size 5 rebar stick ($14.84 USD)
- Cost of 40' Size 5 rebar stick ($27.46 USD)
- Cost of 20' Size 6 rebar stick ($21.4 USD)
- Cost of 40' Size 6 rebar stick ($39.96 USD)
- Cost of 20' Size 8 rebar stick ($37.31 USD)
- Cost of 40' Size 8 rebar stick ($68.59 USD)

The above price estimates are based on the current market price of steel and a reasonable markup from raw steel to rebar products.

The most common lengths of pre-cut rebar in the United States are 20`, 40' and 60'. These are known as rebar sticks. When the dimensions of a slab, wall or other form exceed the length of a single stick of rebar, it is required to overlap and tie rebar pieces to create the added length. This process is called lapping, and the length of the overlapping rebar is the rebar lapping length. The length of the lap is specified by a "Lapping Factor (LF)" which is often 40 or 60 times the diameter of the rebar. Engineering specifications of a lapping factor should always be applied.

- Length of Rebar in Grid
- Weight of Rebar in Grid
- Rebar in a Wall
- Rebar in an Irregular Shaped Slab
- Rebar in a Circular Slab
- Rebar Lapping Length
- Rebar Cost Estimate
- Weight of any Length of Rebar
- Concrete Displaced by Rebar
- Total Weight of a Slab with Rebar
- Calculadora de Barras de Refuerzo (Spanish Version)

A class of rebar tools, both powered and manual, have been developed to aid construction workers in working with rebar. These include the following:

- Rebar Cutters are used to cleanly and safely cut sections of rebar.
- Rebar Benders are used to bend rebar sticks precisely to fit into concrete forms.
- Rebar Tiers are used to tie rebar grid intersections and for rebar lapping.
