`delta_max = (omega_0*l^4)/(30* "E" * "I" )`

Enter a value for all fields

Deflection, in engineering,is the angle, distance or degree to which a structural element is displaced under a load, in this case the beam.

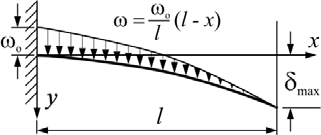

Maximum Deflection; Cantilever Beam Maximum intensity ωo (N/m) can be expressed as:

    `delta_max=(ωo*l^4)/(30*E*I)`
     where

    E = modulus of elasticity (Pa (N/`m^2`), N/`mm^2`, psi)
     I = moment of Inertia (`m^4`,`"mm"^4`, `"in"^4`)

    l = Length of beam(m)

This equation computes Maximum deflection cantilever Beam maximum intensity.
